KFORTS Burglar-Resistant Systems RC2, P4A
Lower level in accordance with EN1627-1630 and EN356.
According to EN1627, the casual burglar additionally attempts to gain entry using simple tools, e.g. screwdrivers, pliers, wedge and in the case of grilles and exposed hinges, small handsaws. Mechanical drilling tools are not associated with this level of burglar as a result of the use of drill-resistant cylinders. The burglar typically attempts to take advantage of opportunities, has little knowledge of the likely level of resistance, and is concerned with both time and noise. No specific knowledge of the likely rewards is anticipated, and the level of risk the burglar is willing to take is low.
Therefore, RC2 systems will resist this kind of burglar to protect people and essential assets.
Specifications
Specifications
| Burglar resistance class |
RC2, P4A |
| Glass thickness |
less than 31mm |
| Profile thickness |
2mm |
| Fixed panel |
|
| Profile width | 64mm |
| Window | |
| Profile width | 64mm |
| Door | |
| Profile width | 64mm |

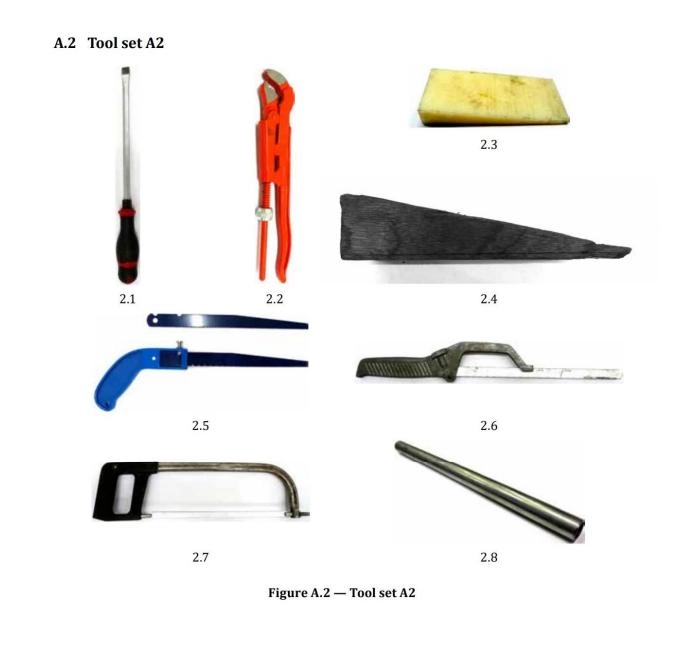

Table 3 - Tool set A2
|
Quantity |
Tool set A1 plus the following |
Tool No. |
|
1 |
Screwdriver; Flat blade, length (365 + 25) mm, blade width (16 ± 2.2) mm | 2.1 |
|
1 |
Pipe wrench; length (240 ± 20) mm |
2.2 |
|
2 |
Plastic wedges; length (200 ± 25) mm, width (80 ± 10) mm, height (40 ± 5) mm |
2.3 |
|
2 |
Wood wedges: length (200 ± 25) mm, width (80 + 10) mm, height (40 ± 5) mm |
2.4 |
|
1 |
Compass saw: with two bimetals or HSS blades, total length (310 ± 25) mm |
2.5 |
|
1 |
Pad saw: with two bimetals or HSS blades, total length (310 ± 25) mm |
2.6 |
|
1 |
Hacksaw, with two bimetals or HSS blades, blade length (330 ± 30) mm |
2.7 |
|
1 |
Steel extension tube, length (500 + 5) mm, outer diameter (30 + 0.5) mm, maximum wall thickness (3 ± 0.3) mm |
2.8 |

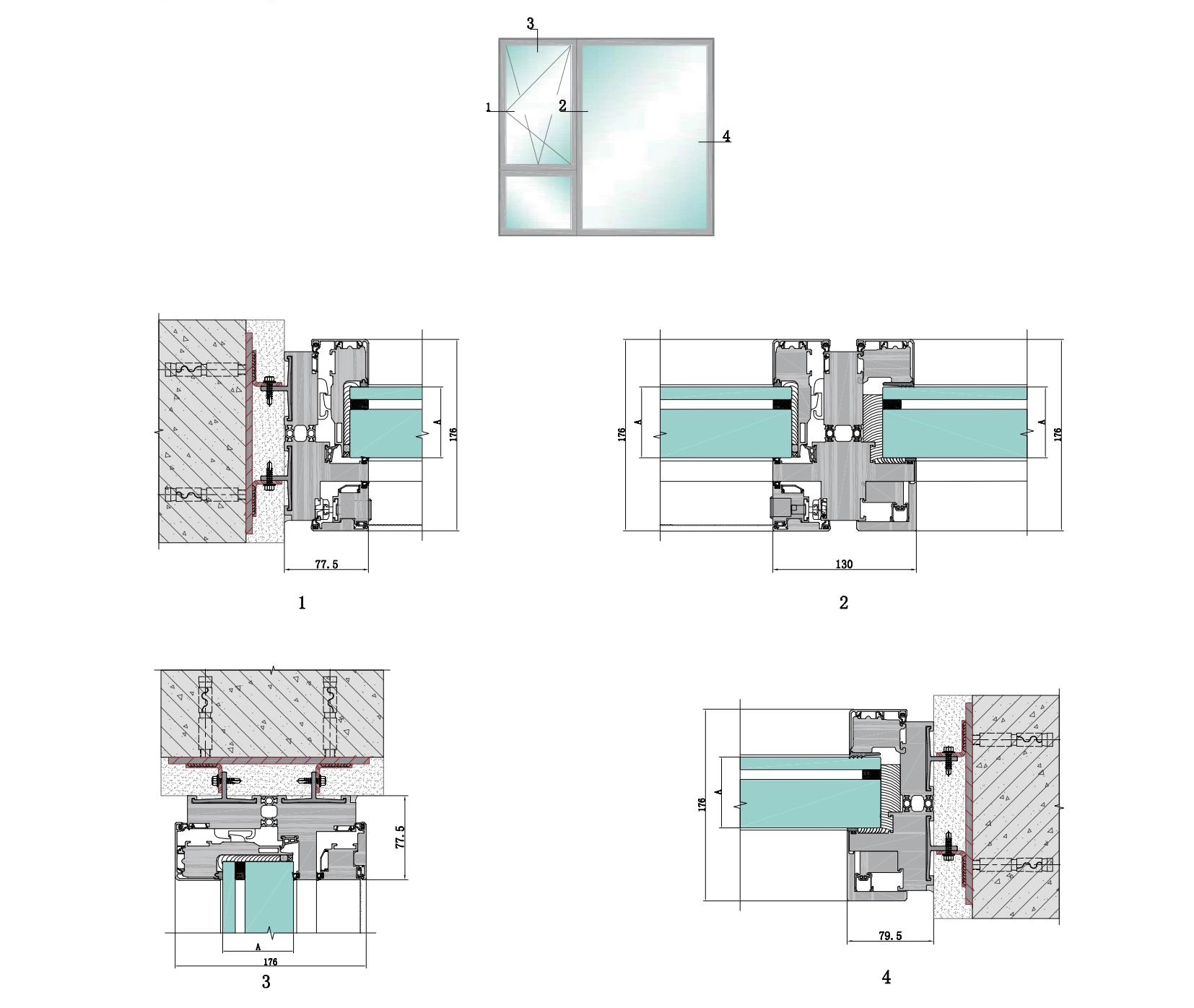

Window System
Section Examples

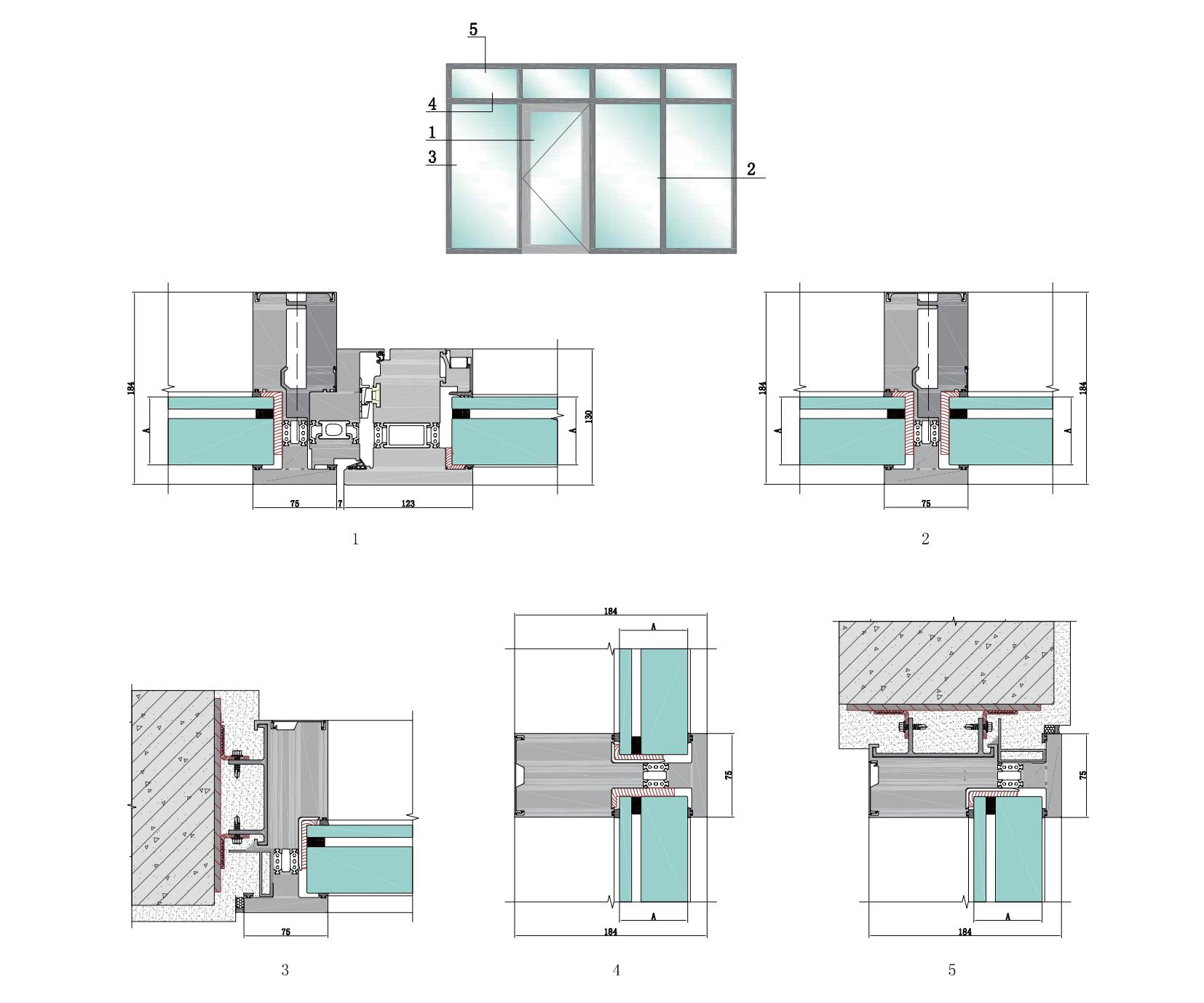

Swing Door and Curtain Wall System
Section Examples

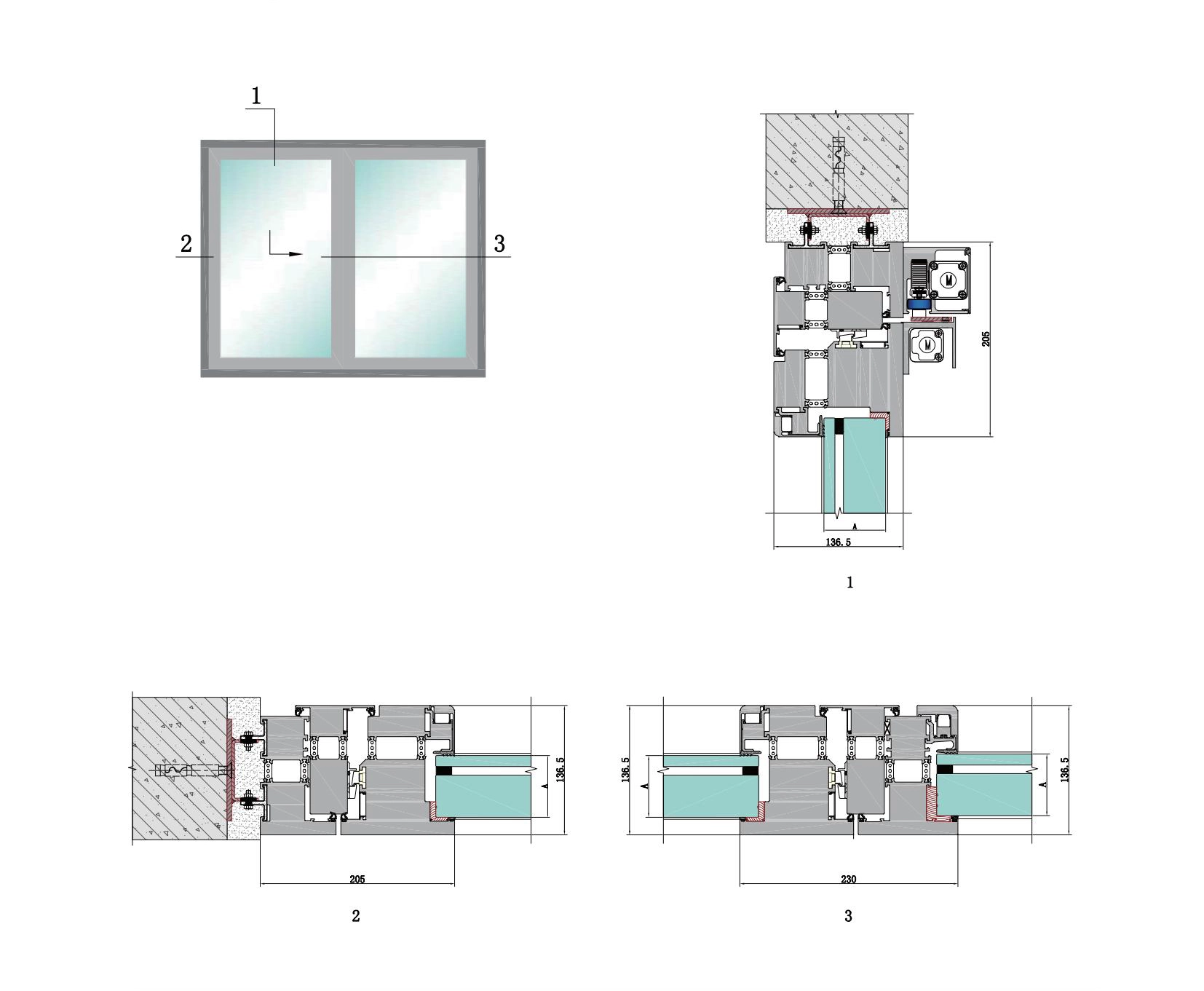

Sliding Door System
Section Examples
More of Our High Quality Burglar Resistance Systems
KFORTS provides glass door and window security systems and protection against burglar, violent intrusion, bullets, explosions, and fire.
