KFORTS Burglar-Resistant Systems RC6, P8B
Highest level based on EN1627-1630 and EN356.
According to EN1627, the experienced burglar uses in addition spalling hammer, powerful electric tools, e.g. drills, jig- and sabre saw, and an angle grinder with a disc of max. 230 mm diameter. The tools are capable of being operated by a single person, have a high level of performance and are potentially very effective. The burglar anticipates a good level of reward, is resolute in his efforts to gain entry and is very well organized. He also has no concerned for the level of noise he generates and is prepared to take a high level of risk.
Therefore, RC6 systems will resist this kind of burglar to protect people and essential assets.
Specifications
| Burglar resistance class |
RC6, P8B |
| Glass thickness |
31mm-46mm |
| Profile thickness |
5mm |
| Fixed panel |
|
| Profile width | 75mm-90mm |
| Window | |
| Profile width | 78mm-84mm |
| Door | |
| Profile width | 121mm-126mm |

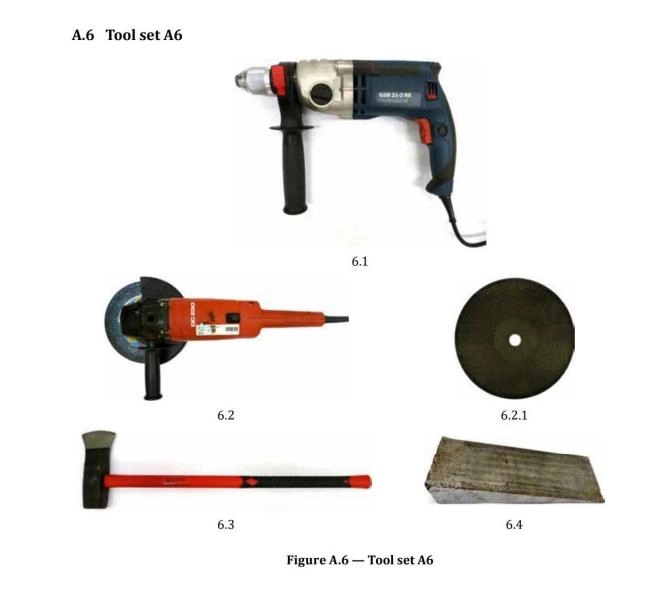

Table 7 - Tool set A6 Quantity
|
Quantity |
Tool Name Details |
Tool No. |
|
1 |
Electric drill: Nominal 1,050 W ± 10%, with percussion action | 6.1 |
|
1 |
Angle grinder: Nominal 2,300 W ± 10%, disc diameter max 230 mm |
6.2 |
|
4 |
Discs: Ø 230 mm max, thickness 3.0 mm (for steel or stone, excluding diamond) |
6.2.1 |
|
1 |
Spalling hammer: Length (800 ± 50) mm, head weight (3.5 ± 0.25) kg |
6.3 |
|
2 |
Steel wedges: Length (200 ± 10) mm, width (80 ± 10) mm, height (40 ± 5) mm |
6.4 |

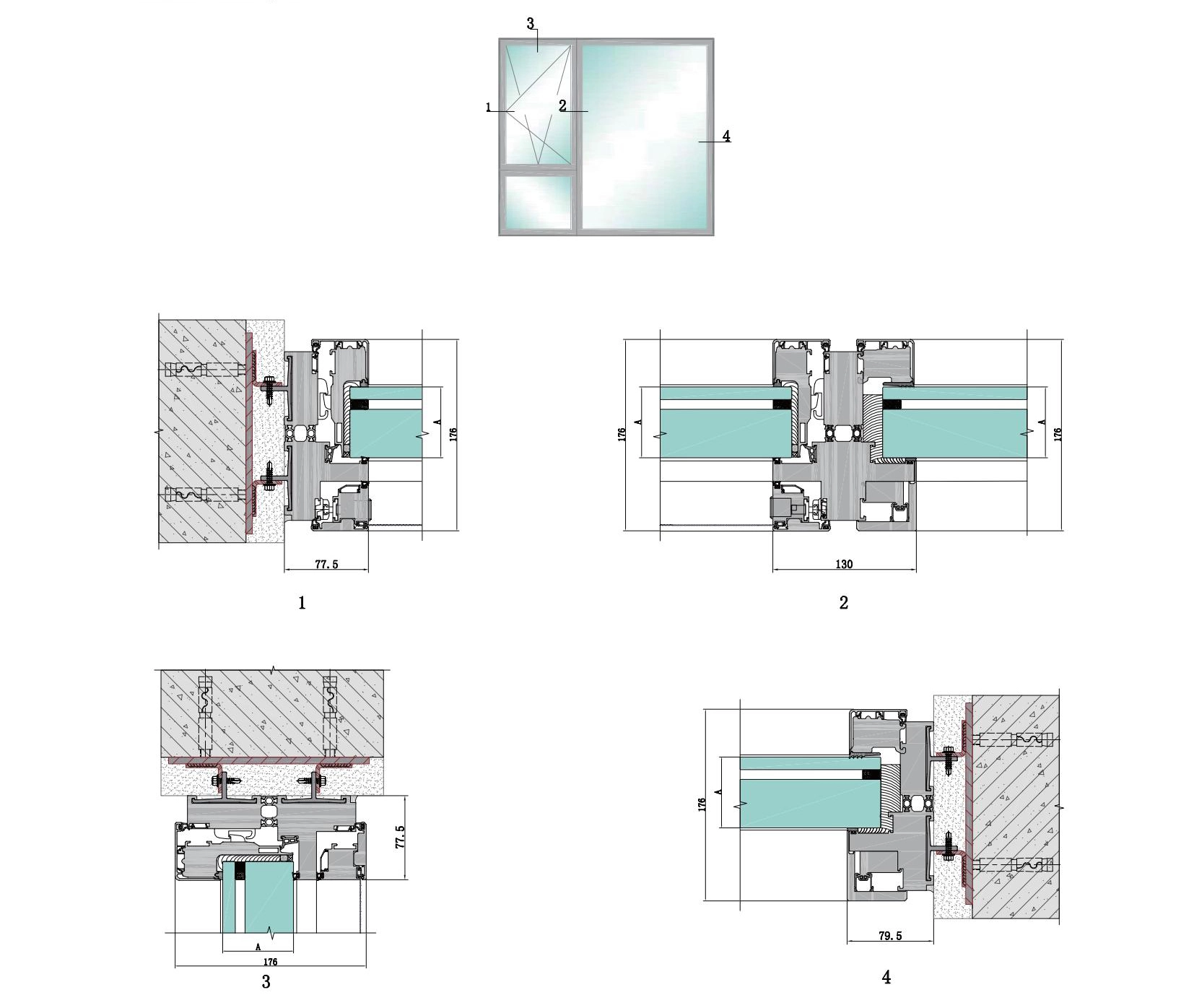

Window System
Section Examples
Swing Door and Curtain Wall System
Section Examples

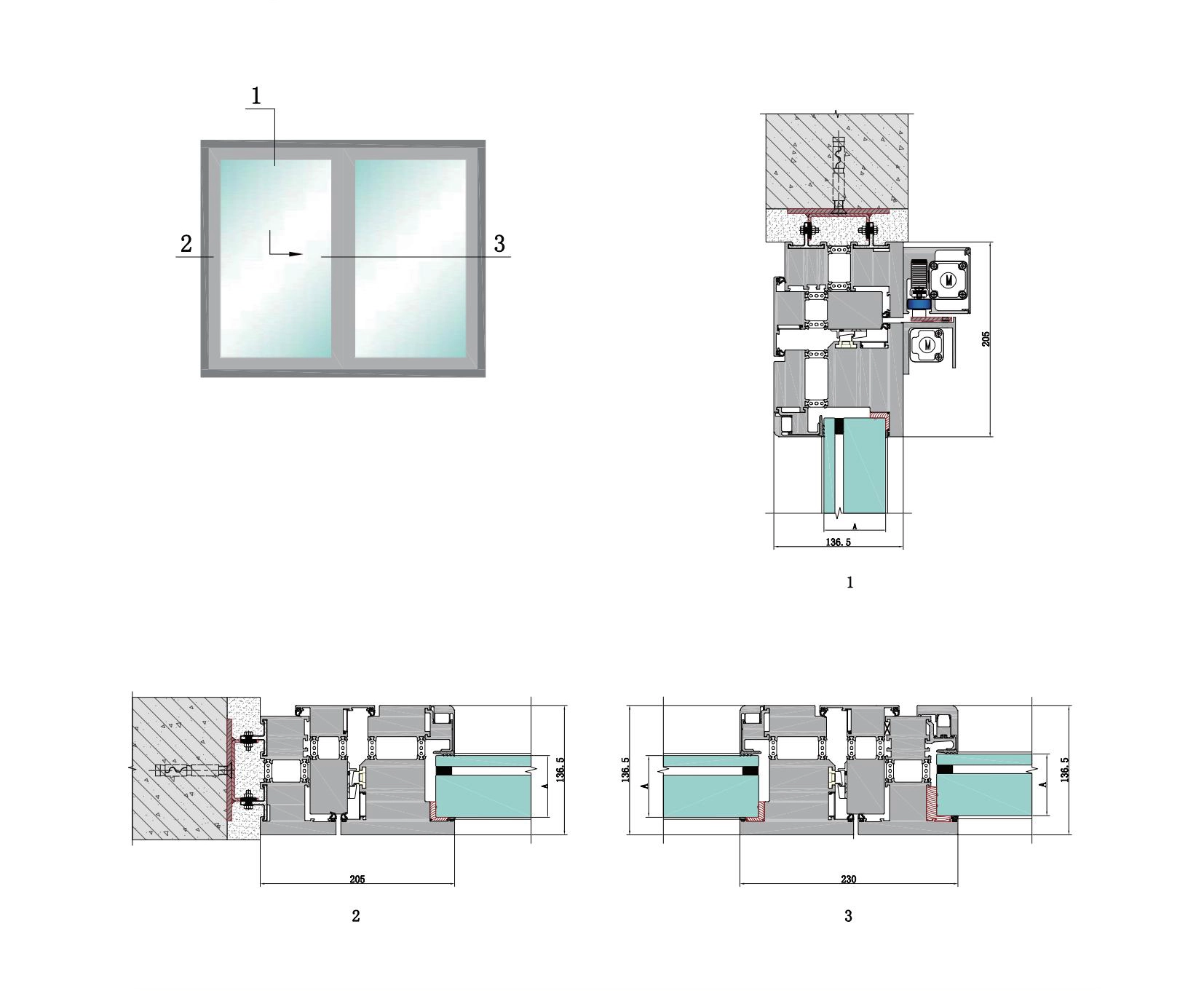

Sliding Door System
Section Examples
